The Complete STEP to PLY Conversion Guide

Free-Form Surfaces Support:

STEP: Full support | PLY: No support

Impact:

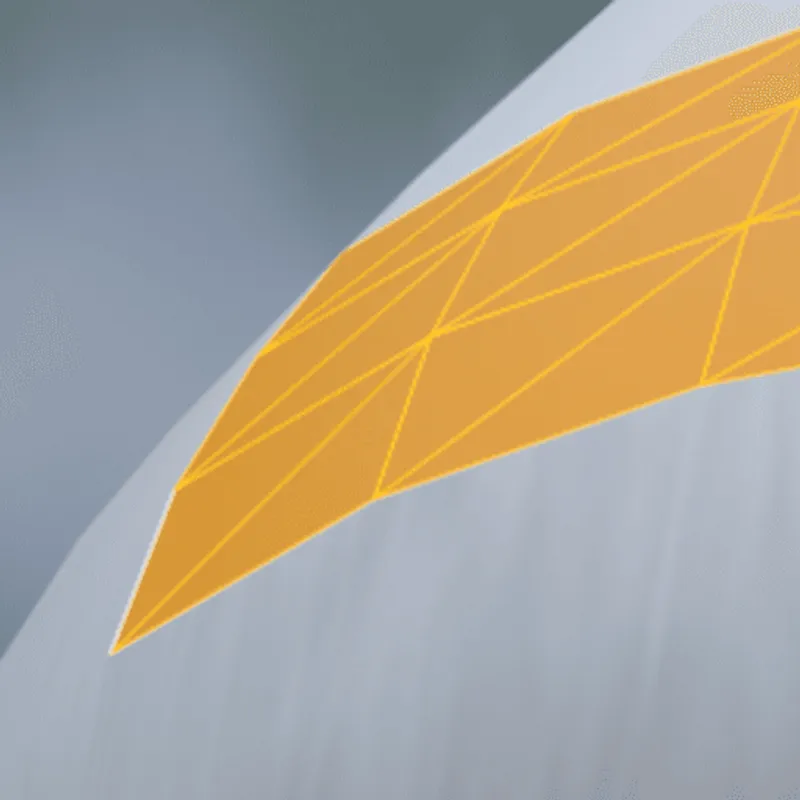

Free-form surfaces allow a CAD user to design surfaces with advanced controls over curvature and continuitiy. While these surfaces are common for CAD models (in the form of so-called boundary representations or "B-reps"), they need to be converted to polygonal triangle or quad data to work with most 3D rendering engines - a process called tessellation. In this example, a surface patch is used to describe a part of a curved surface of a product. Without support for this feature, the free-form surface has to be tessellated into quads or triangles.

Transparent Materials Support:

STEP: Partial support | PLY: No support

STEP Notes:

STEP defines a surfacestyletransparent entity (transparency: REAL, 0.0–1.0) present in AP203e2, AP214, and AP242. However, support is inconsistent in practice — many CAD tools do not reliably export or import transparency values via STEP.

Impact:

Transparency is commonly used for see-through objects, containing (usually partially) transparent surfaces. In this example, a transparent material is used to model the glass window of the microwave, so that one can see inside. Without support for this feature, the inside of the microwave cannot be seen, as the window will be rendered as an opaque surface.

Scene Nodes Support:

STEP: Full support | PLY: No support

Impact:

Scene nodes make it possible to address parts of a 3D model separately. For example, a part could be dynamically hidden or shown as part of a 3D configurator. Without support for this feature, a 3D scene will only consist of a flat model, without parts being individually configurable.

Hierarchical Scene Graph Support:

STEP: Full support | PLY: No support

Impact:

Scene graphs are one of the most common concepts in 3D computer graphics. By structuring the scene in a hierarchical way, logical parts of it can be easily addressed and transformed. This is useful in many applications, like games or 3D configurators. Without support for this feature, a 3D scene cannot be structured hierarchically, for example objects cannot be logically composed of smaller objects.

Standardized Format Support:

STEP: Partial support | PLY: No support

PLY Notes:

Compatibility of all properties strongly depend on particular compatibility of the tools that export / import the DCC file, as there is no clear standard for this format.

Impact:

Standardization plays a huge role in 3D model formats. With a format being standardized, every application will have a clear way of how to load or store data using this format. This makes it easier to re-use the 3D model across different applications, but also to make sure it will still be accessible and usable after a couple of years.
