The Complete VRM to STEP Conversion Guide

General Information

This guide is part of the RapidPipeline 3D Formats Knowledge Database. It shows how to convert VRM to STEP, if you'd like to know more about the formats, please check out the following links:

• Learn more about the VRM format
• Learn more about the STEP format
• Limitations of a VRM Files to STEP Conversion Workflow

What are VRM and STEP files commonly used for?

The VRM file is a format mostly used for animated 3D avatar models.
The STEP file is a format mostly used for exchange of CAD data.

Limitations of a VRM Files to STEP Conversion Workflow

The following limitations should be taken into account when converting VRM files to STEP format:

VRM Feature (not supported by STEP)	Limitation Details
Geometry Compression	Geometry Compression: supported in VRM, but not in STEP. Geometry compression describes the process of compressing the representations of a 3D model's geometry, usually a triangle mesh. 3D geometry compression does not change the topology of a 3D model, but just changes the way that a 3D model and its 3D positions and related vertex data is stored. Geometry compression can be lossy (just like JPEG compression in image processing can be lossy, for example), in which case one might notice slight artifacts like variations in 3D vertex positions (compared to the uncompressed 3D model). However, such differences are often not noticeable. There are only very few standards for geometry compression, like glTF's support of Draco compression and similar extensions.
Texturing	Texturing: supported in VRM, but not in STEP. Texturing describes the process or refining the visual appearance of a 3D model's surface through additional 2D or 3D data, defined in a different reference system. The by far most common use of texturing are 2D texture images, applied to model visual material properties the 3D surface. Other cases include the use of procedural 2D or 3D funtions that produce intensity or color signals, which are then mapped to the 3D surface. For the vast majority of these cases (all of them except for 3D procedural functions), a parameterization or "Texture Mapping" is needed, which maps the 2D content to the 3D surface. Coming from a 2D coordinate space with coordinate axes often entitled U and V (in contrast to XYZ, which are the 3D surface positions), this process of mapping is also called UV Mapping, and it can be done with a dedicated UV map, or through a live mapping (e.g., box mapping). In this example, a texture image is applied to the 3D model to give the control panel a realistic look. Without support for texturing, the panel would have to use a single material instead, or all controls (including text) would need to be modeled through 3D geometry, instead of a 2D texture image.

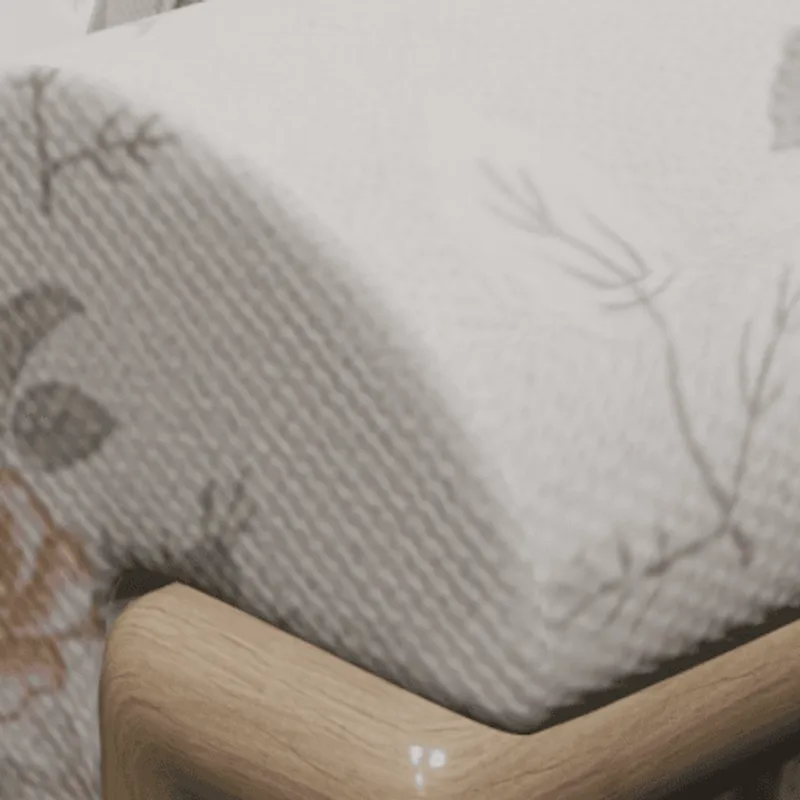

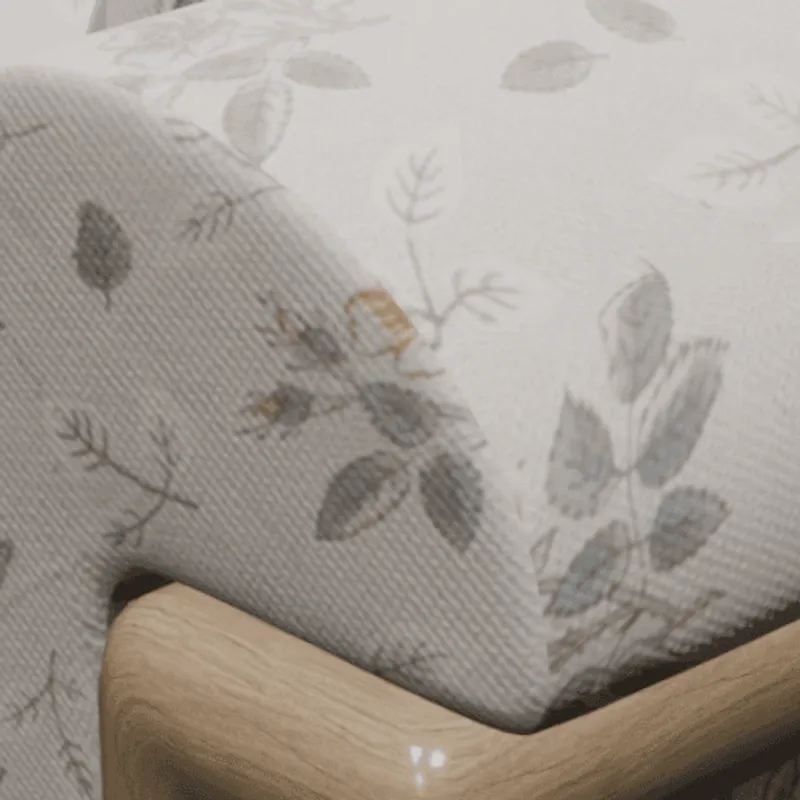

Texture Transforms	Texture Transforms: supported in VRM, but not in STEP. Texture transforms describe transformation operations that are applied to 2D texture images or UV coordinates when using 2D texture data on a 3D surface. They can be used, for example, to make sure that material patterns are using real-world scale when rendered on the 3D surface. In this example, such a pattern is used and scaled with the help of a texture transform. Without support for this feature, the texture pattern shows up at the wrong scale.
Texture Compression	Texture Compression: supported in VRM, but not in STEP. Texture compression refers to a process of compressing 2D texture images for memory-efficient rendering (and sometimes for efficient transmission). The decompression of compressed texture data is therefore performed on-the-fly during rendering, so that it never has to be stored in unpacked form, but can be kept as-is in GPU memory. Formats supporting texture compression methods, such as the ones offered by glTF through KTX2 containers, therefore allow 3D models to use a smaller memory footprint on the client device during rendering. This can speed up rendering time, and also make it possible to store and use larger amounts of texture data than it would otherwise be possible.
Multiple UV Channels	Multiple UV Channels: supported in VRM, but not in STEP. Multiple UV channels allow the optimized and sophisticated use of various 3D modeling features at once. For example, one can use one set of UVs and 2D texture data to model a tiling texture or procedural material, and another UV set to leverage a global lightmap or occlusion map of the 3D model. In this example, a combination of tiled texture (UV channel 1) and baked ambient occlusion map (UV channel 2) is used. Without support for this feature, one needs to either give up the tiling property (e.g., by using a tool like RapidPipline to bake a single texture atlas), or give up the ambient occlusion map, as only one UV channel will be usable.
Embedded Textures	Embedded Textures: supported in VRM, but not in STEP. Embedded textures allow the storage and exchange of an entire 3D model and its materials within a single file, by embedding the texture images directly into the 3D file (and not storing them as separate image files). Without support for this feature, textures have to be stored in separate image files, and referenced from the main 3D model file.
Normal Mapping	Normal Mapping: supported in VRM, but not in STEP. Normal maps are used to model shading differences that are arising from small geometric details on a surface, such as fabric structures, visible gaps between bricks forming a wall, or rough rock surfaces. In this example, a normal map is used to model a fabric structure. Without support for this feature, the rendered fabric will look smoother than it actually is in the real world, as the fabric structure won't be visible.
Materials	Materials: supported in VRM, but not in STEP. Materials are a fundamental concept in 3D modeling, enabling colored and - in many cases - photorealistic rendering of the 3D model that they are applied to. There are also some formats that don't make use of 3D materials, for example because they need to solely describe a shape (e.g., for many cases in additive manufacturing). In this example, photorealistic PBR materials are used to equip the 3D model with a realistic look. Without support for materials, the model will have to be rendered with a default material (often a default shade of gray).
Transparent Materials	Transparent Materials: supported in VRM, but not in STEP. Transparency is commonly used for see-through objects, containing (usually partially) transparent surfaces. In this example, a transparent material is used to model the glass window of the microwave, so that one can see inside. Without support for this feature, the inside of the microwave cannot be seen, as the window will be rendered as an opaque surface.
PBR Materials	PBR Materials: supported in VRM, but not in STEP. PBR materials enable Physically-Based-Rendering (PBR) for a standardized, photorealistic look of rendered images. PBR uses concepts like metallic-roughness or specular-glossiness properties and a microfacet-based modeling of the surface, using a concept called BRDF (Bi-Directional Reflectance Distribution Function). In this example, PBR materials are used to achieve realistic looking plastic and metal materials. Without support for PBR materials, only basic colors and shading can be used (for example, based on more simple shading models, such as the Blinn/Phong model).
Vertex Colors	Vertex Colors: supported in VRM, but not in STEP. Vertex colors allow the attachment of colors to each vertex of a 3D model. This can be useful in scenarios such as scientific visualization, or when converting/meshing data from a colored 3D point cloud, for example. On the polygonal surface connecting the vertices, the respective vertex colors are usually smoothly interpolated. In this example, different colors are attached to the different corners of a cube. Without support for this feature, the cube won't have any colors.

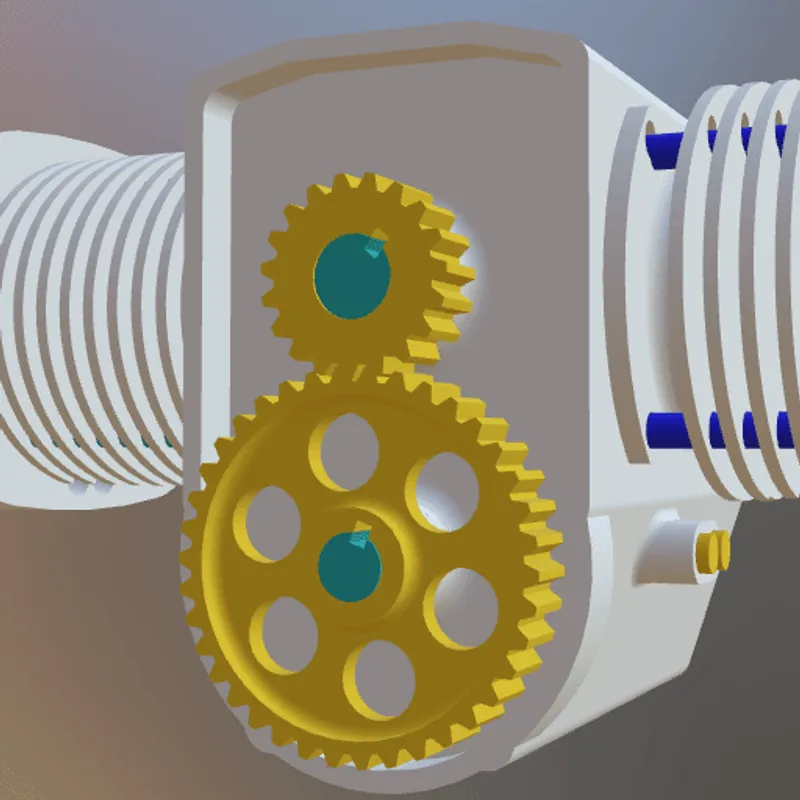

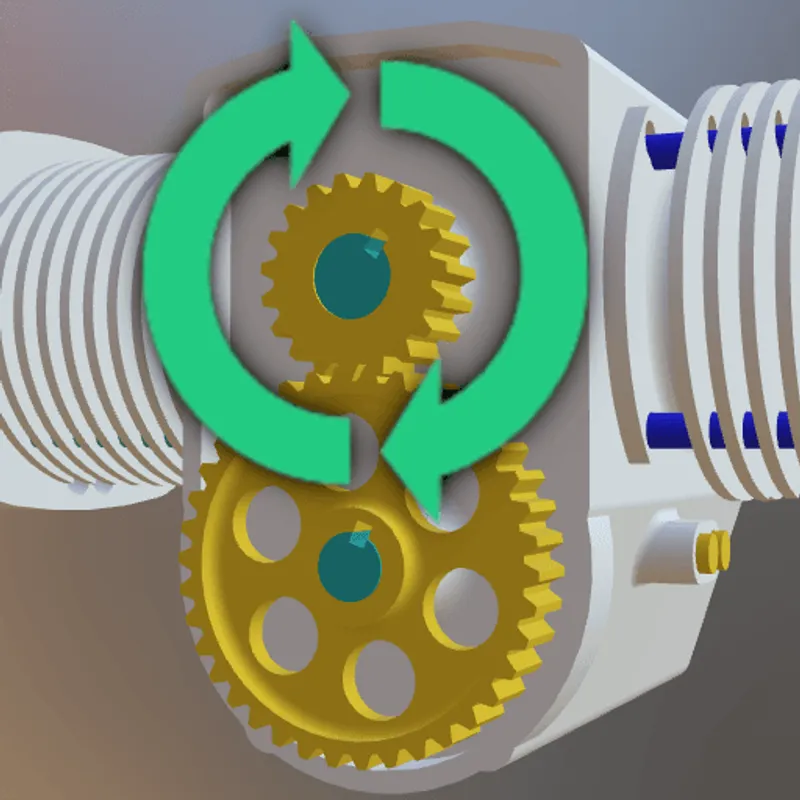

Animations	Animations: supported in VRM, but not in STEP. Animations are an important part of many interactive 3D assets, for example in real-time rendering (including games, XR training, assembly instructions, product demos, and other use cases). There are various kinds of animations that can be used on 3D models. In this example model, a rigid animation is used to make the gears spin. Without support for this feature, in this example, the gears won't move.
Skinned Animations	Skinned Animations: supported in VRM, but not in STEP. Skinned animations are commonly used for 3D character models in interactive applications, such as games or virtual worlds. They make it possible to easily animate the 3D model using a helper structure based on virtual bones, composing a virtual skeleton for animation control. In this example, a skinned animation is used to pose a 3D character. Without support for skinned animations, the 3D model will remain in its default pose, such as the default T-pose.
Morph Targets	Morph Targets: supported in VRM, but not in STEP. Morph Targets, or "Blend Shapes", are commonly used to animate facial expressions and soft surfaces, for example cloth under a cloth simulation. They model various states of the animations with different vertex positions. In contrast to skinned animations, morph targets do not use any virtual bones, but work solely on the vertex data. In this example, a facial animation is achieved through morph targets. Without suport for this feature, in this example, the face will not show the animation.

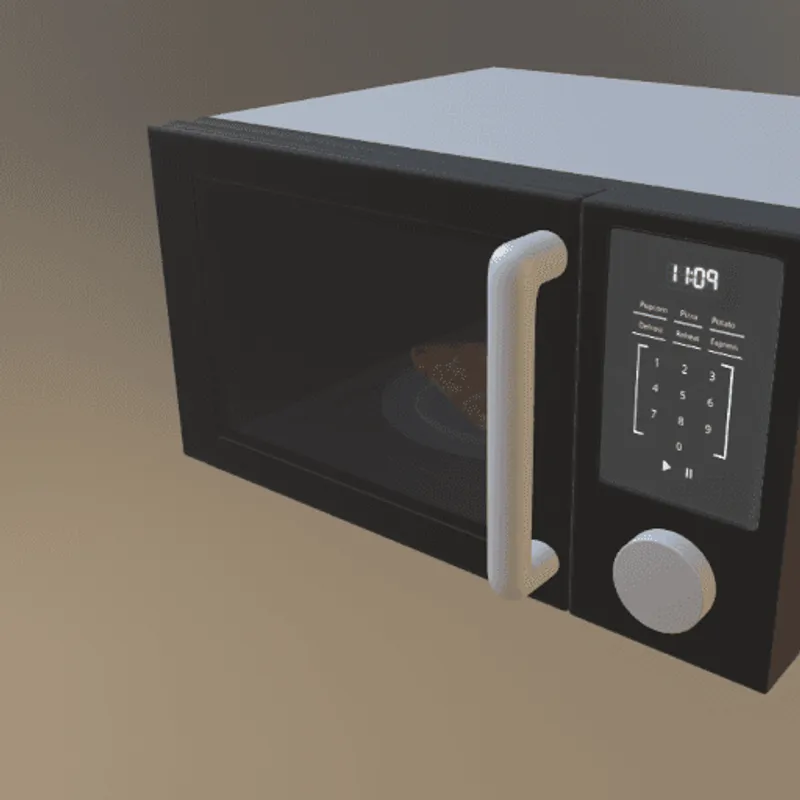

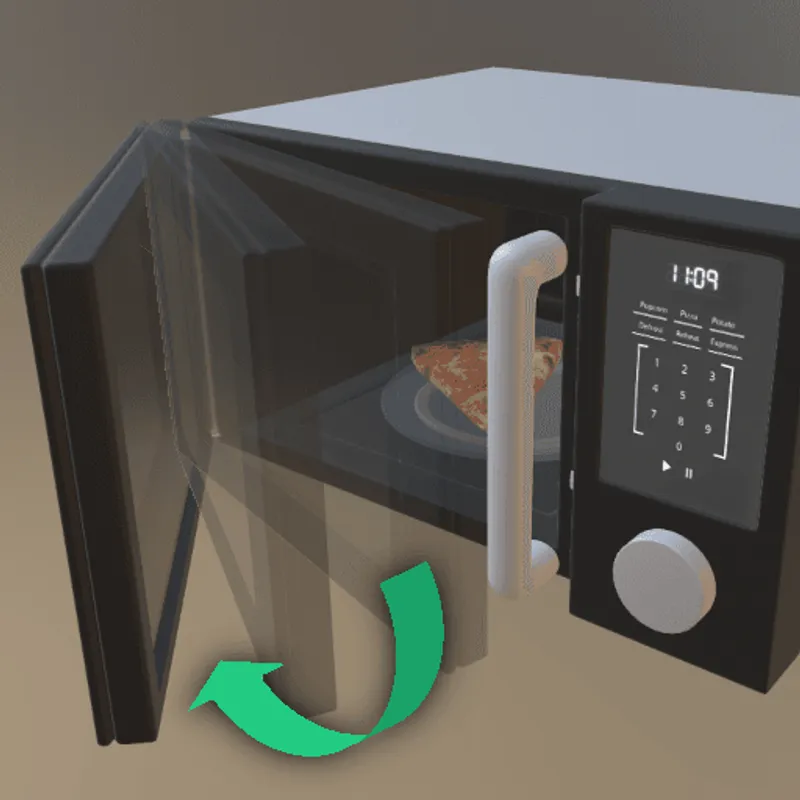

Rigid Animations	Rigid Animations: supported in VRM, but not in STEP. Rigid Animations are typically used to animate mechanical parts. In this example, the door of this 3D model of a microwave can be interactively opened or closed, using a rigid animation that gradually changes the 3D transformation of the door. Without support for this feature, in this example, the door will just stay in place and won't move.
Standardized Format	Standardized Format: supported in VRM, but not in STEP. Standardization plays a huge role in 3D model formats. With a format being standardized, every application will have a clear way of how to load or store data using this format. This makes it easier to re-use the 3D model across different applications, but also to make sure it will still be accessible and usable after a couple of years.

Converting and Optimizing VRM Files to STEP

There are various ways to convert between VRM and STEP. With RapidPipeline, you can easily convert and and optimize VRM files, at scale. It supports STEP, as well as many other file formats (examples: 3dsMax, FBX, glTF, OBJ, PLY, STL, USD, USDZ), at high quality.

Due to the potential limitations aforementioned on the table above, in principle, one cannot always perfectly convert 3D data between STEP and other formats. In the following, you can find conversion guides between STEP and the most important other formats, along with a rough score for compatibility of this workflow:

What's the best way to get VRM files into my 3D applications, and are there alternatives to using STEP?

Doing 3D conversion right, especially at scale, can be tricky, as 3D data is in general a rather complex (yet very powerful!) medium. This also applies to VRM and STEP files - the conversion guide above provides a rough first idea about that. Once you know what you would like to do, tools like RapidPipeline can help you perform the necessary steps, and to even automate the process for thousands or even millions of files.

Especially when introducing pipelines and workflows at scale in an enterprise context, it is usually good to rely on dedicated tools and expertise, making sure you do not introduce any steps into your 3D workflow that are detrimental to the final output's quality, or that take your team too much time (and money).

If you're interested to hire dedicated expertise from the best in the field to help your company reach your goals fast and reliably, please do not hestitate to contact DGG. Being the creators of RapidPipeline, and ambassadors for open 3D standards for more than a decade, we have been building some of the world's most advanced 3D pipelines, having processed many millions of 3D assets.

Therefore, our expertise will help you to reach your goals faster, at scale, and with the least possible friction, since we are focused on maximum interoperability.

To get started with 3D data conversion and optimization today, sign up for a free account!

If you have any questions, feel free to chat with our human team.
